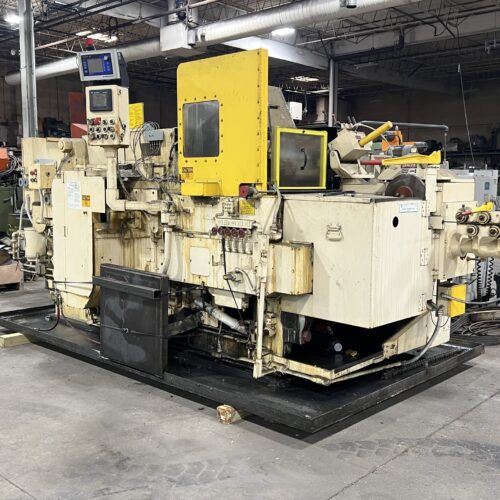

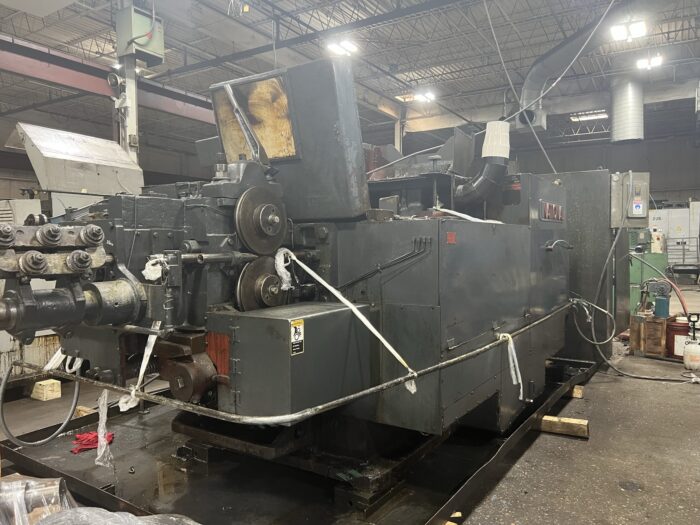

89 National 2D/3B 1/2″ Cold Header

Description

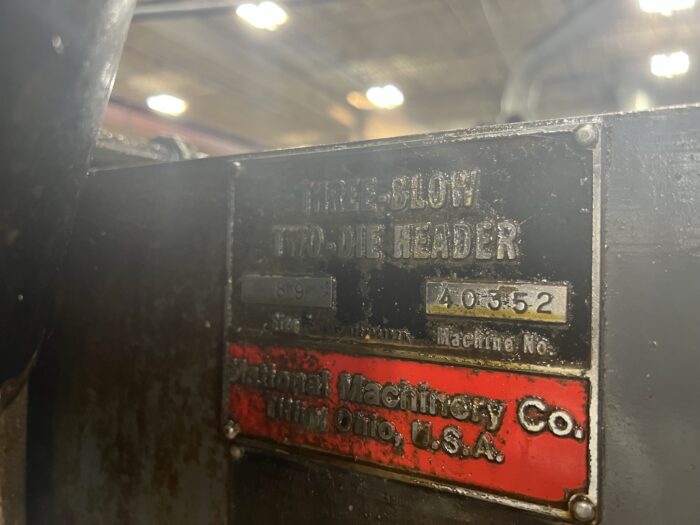

S/N – 40352

• POSITIVE KNOCKOUT 2ND & 3RD STATION (New Style – top side)
• TRIM FEATURE – (currently set-up to trim)
• DIE RELEIVING KNOCKOUT
• BUSHING CUT-OFF

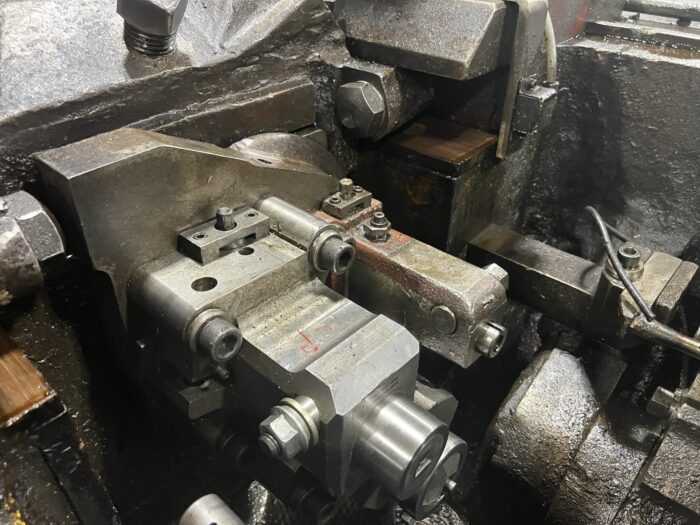

• COMPLETE NEW TRANSFER from National Machinery

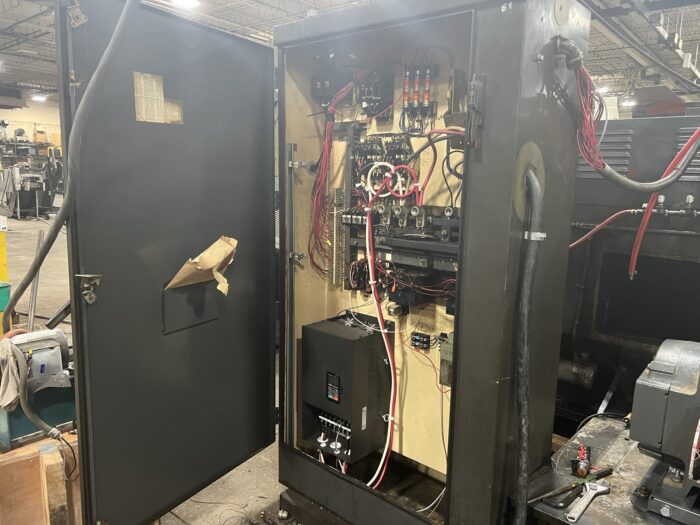

• NEW ‘VF’ DRIVE – ELECTRICS: 460/3PH/60HZ

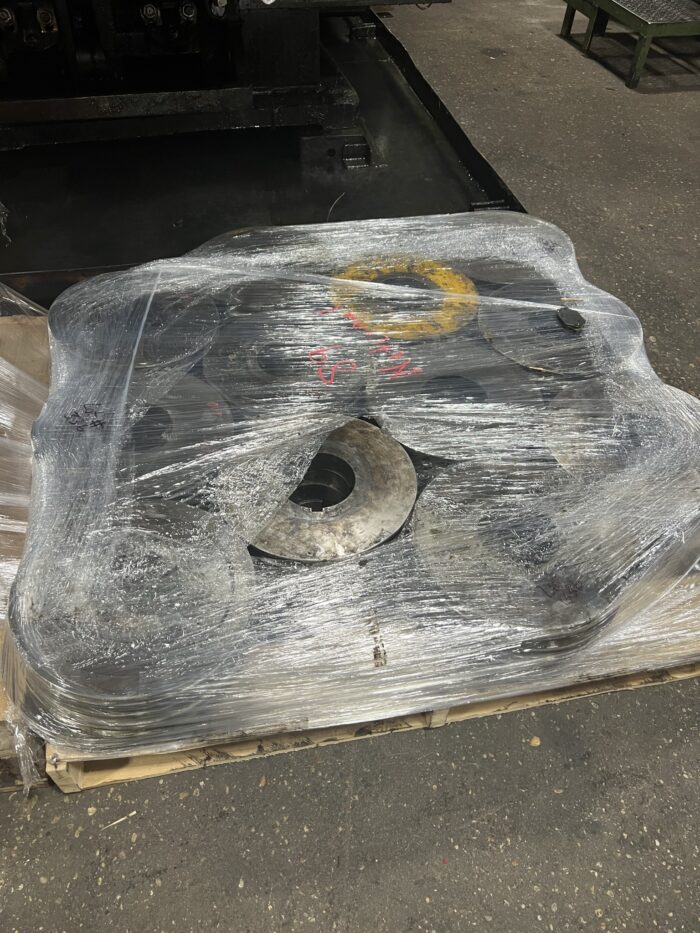

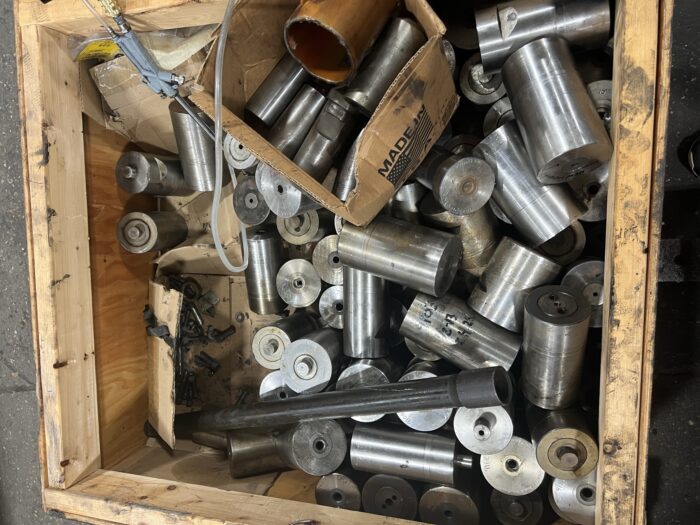

• EXTRA TOOLING (49 feed rolls)
• OIL TRAY

SPECIFICATIONS:

MAX. CUTOFF DIAMETER (MILD STEEL)……………………….. .562
MAX. CUTOFF DIAMETER (ALLOY STEEL)…………………. .500
MAX. CUTOFF LENGTH…………………………………………. 6.000
MAX. 1st DIE KNOCKOUT .…………………………………………. 6.000
MAX. 2ND DIE KNOCKOUT……………………………………… 5.000
MAX. PRODUCTION RATE…………………………………………….. 100 PPM
DIMENSIONS……………………………………………………….7’W x 18’L
WEIGHT……………………………………………………………46,400 LBS.

Location – Byron, IL

Condition – Good

Can be seen under power
