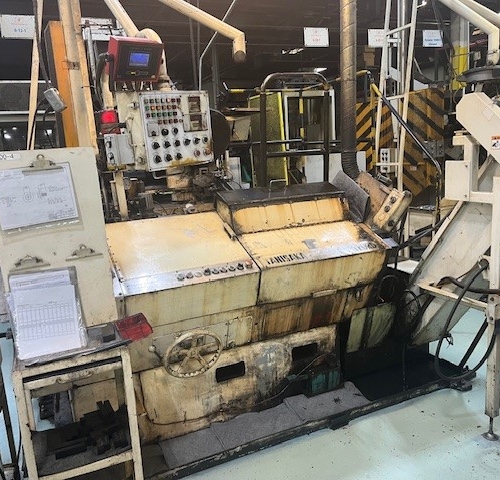

14mm AF1414-3 ASAHI SUNAC

AF1414-3 ASAHI SUNAC 3-DIE/3-BLOW

YEAR: 1989

SPECIFICATIONS:

MAXIMUM WIRE DIAMETER………………………………………. 14mm

MAXIMUM CUT-OFF LENGTH…………………………………….. 180 mm

MINIMUM CUT-OFF LENGTH……………………………….. 19mm

MAXIMUM DIE KNOCKOUT…………………………………….….. 140 mm

MINIMUM DIE KNOCKOUT…………………………………… 25mm

PKO STROKE………………………………………………………… 30 -10 mm

PRODUCTION RATE…………………………………………….….. 125 PPM

FORGING TONNAGE………………………………………… 130 METRIC TONS

DIMENSIONS…………………………………………………. 2650mm x 6050mm

WEIGHT……………………………………………………….. 34 METRIC TONS

FEATURES:

* BUSHING CUT-OFF

* TIMED POSITIVE KNOCKOUTS

* OUTSIDE TRANSFER SET-UP JIG

* WIRE STRAIGHTENER

* SOUND ENCLOSURE

* TOOLING & SPARES (Last AF1414, so all related will go with the machine)

* ELECTRICS: 480V/3PH/60HZ

OPTIONS:
